import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.io.Reader;
import java.net.Socket;
/*
* To change this license header, choose License Headers in Project Properties.
* To change this template file, choose Tools | Templates
* and open the template in the editor.
*/
/**
*
* @author justi
*/
public class FrankClient {
/**
*/
public final static String LOCALHOST = "0:0:0:0:0:0:0:1";
/**
* Program invocation, execution starts here
* @param args command-line arguments
* @throws java.lang.InterruptedException
*/
public static void main(String[] args) throws InterruptedException {
// Local variables/fields
Socket socket = null;
InputStream is;
Reader isr;
BufferedReader br;
String serverMessage;
int clientLoopCount = 0;
try {
while (true)
{
clientLoopCount++; // increment at beginning of loop for reliability
System.out.println(FrankClient.class.getName() + " creating socket...");
// We request an IP to connect to ("localhost") and
// port number at that IP (2317). This establishes
// a connection to that IP in the form of a Socket
// object; the server uses a ServerSocket to wait for
// connections.
socket = new Socket(LOCALHOST, 2318); // locohost?
// Now hook everything up (i.e. set up the streams), Java style:
is = socket.getInputStream();
isr = new InputStreamReader(is);
br = new BufferedReader(isr);
// Read a single line written by the server. We'd
// do things a bit differently if there were many lines to be read
// from the server instead of one only.
serverMessage = br.readLine();
System.out.println("==================================================");
System.out.print ("Client loop " + clientLoopCount + ": ");
System.out.println("now we're talking!");
System.out.println("The message the server sent was: '" + serverMessage + "'");
// socket gets closed, either automatically/silently by this code (or possibly by the server)
Thread.sleep(500l); // slow things down, for example 500l (long) = 500 msec
} // end while(true) // infinite loops are dangerous, be sure to kill this process!
}
catch (IOException e)
{
System.err.println("Problem with " + FrankClient.class.getName() + " networking:"); // describe what is happening
System.err.println("Error: " + e);
// Provide more helpful information to user if exception occurs due to running twice at one time
if (e instanceof java.net.BindException) {
System.err.println("*** Be sure to stop any other running instances of programs using this port!");
}
}
finally // occurs after any other activity when shutting down
{
try {
if (socket != null)
socket.close();
} catch (IOException e) {}
// program exit: tell somebody about that happening. Likely cause: server drops connection.
System.out.println();
System.out.println( "FrankClient.class.getName() + exit");
}
}
}
import java.io.*;
import java.net.*;
/**
* Very slightly more complex than example1, further modifying example2. The
* only thing this does differently is introduce a loop into the response, so
* you don't have to restart the program after one response. Also, it prints out
* the socket pair the server sees. Run the program via telnet several times and
* compare the socket pairs.
*
* telnet (nc) localhost 2318
*
* If you're sophisticated you can contact the instructor's computer while
* running this program.
*
* telnet (nc) [ipNumberOfServerLaptop] 2317
*
* and have the instructor display the socket pairs received.
*
* @author mcgredo
* @author brutzman
*/
public class FrankServer {
/**
* Program invocation, execution starts here
* If already compiled, can run using console in directory ../../build/classes/ by invoking \
* java -classpath . TcpExamples.TcpExample3Server
* @param args command-line arguments
*/
public static void main(String[] args) {
try {
// ServerSocket waits for a connection from a client.
// Notice that it is outside the loop; ServerSocket
// needs to be made only once.
System.out.println(FrankServer.class.getName() + " has started..."); // it helps debugging to put this on console first
ServerSocket serverSocket = new ServerSocket(2318);
OutputStream os;
PrintStream ps;
InetAddress localAddress, remoteAddress;
int localPort, remotePort;
int serverLoopCount = 0;
// Server is up and waiting (i.e. "blocked" or paused)
// Loop, infinitely, waiting for client connections.
// Stop the program somewhere else.
while (true) {
// block until connected to a client
try (Socket clientConnectionSocket = serverSocket.accept())
{
serverLoopCount++; // increment at beginning of loop for reliability
// Now hook everything up (i.e. set up the streams), Java style:
os = clientConnectionSocket.getOutputStream();
ps = new PrintStream(os);
ps.println("This is response " + serverLoopCount + " produced by the server."); // this gets sent back to client!
// Print some information locally about the Socket connection.
// This includes the port and IP numbers on both sides (the socket pair).
localAddress = clientConnectionSocket.getLocalAddress();
remoteAddress = clientConnectionSocket.getInetAddress();
localPort = clientConnectionSocket.getLocalPort();
remotePort = clientConnectionSocket.getPort();
System.out.print ("Server loop " + serverLoopCount + ": ");
// My socket pair connection looks like this, to localhost:
// Socket pair: (( /0:0:0:0:0:0:0:1, 2317 ), ( /0:0:0:0:0:0:0:1, 54876 ))
// Socket pair: (( /0:0:0:0:0:0:0:1, 2317 ), ( /0:0:0:0:0:0:0:1, 54881 ))
// Why is the first IP/port the same, while the second set has different ports?
System.out.println(FrankServer.class.getName() + " socket pair showing host name, address, port:");
System.out.println(" (( " +
localAddress.getHostName() + "=" + localAddress.getHostAddress() + ", " + localPort + " ), ( " +
remoteAddress.getHostName() + "=" + remoteAddress.getHostAddress() + ", " + remotePort + " ))");
if ( localAddress.getHostName().equals( localAddress.getHostAddress()) ||
remoteAddress.getHostName().equals(remoteAddress.getHostAddress()))
System.out.println(" note HostName matches address if host has no DNS name");
// Not/*i*/ce the use of flush() and try w/ resources. Without
// the try w/ resources the Socket object may stay open for
// a while after the client has stopped needing this
// connection. try w/ resources explicitly ends the connection.
ps.flush();
// like it or not, you're outta here!
}
}
} catch (IOException e) {
System.err.println("Problem with " + FrankServer.class.getName() + " networking: " + e);
// Provide more helpful information to user if exception occurs due to running twice at one time
if (e instanceof java.net.BindException) {
System.err.println("*** Be sure to stop any other running instances of programs using this port!");
}
}
}
}
package MV3500Cohort2021JulySeptember.homework1;
import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.io.Reader;
import java.net.Socket;
/*
* To change this license header, choose License Headers in Project Properties.
* To change this template file, choose Tools | Templates
* and open the template in the editor.
*/
/**
*
* @author justi
*/
public class FrankTCPExample3Client {
/**
*/
public final static String LOCALHOST = "0:0:0:0:0:0:0:1";
/**
* Program invocation, execution starts here
* @param args command-line arguments
* @throws java.lang.InterruptedException
*/
public static void main(String[] args) throws InterruptedException {
// Local variables/fields
Socket socket = null;
InputStream is;
Reader isr;
BufferedReader br;
String serverMessage;
int clientLoopCount = 0;
try {
while (true)
{
clientLoopCount++; // increment at beginning of loop for reliability
System.out.println(FrankTCPExample3Client.class.getName() + " creating socket...");
// We request an IP to connect to ("localhost") and
// port number at that IP (2317). This establishes
// a connection to that IP in the form of a Socket
// object; the server uses a ServerSocket to wait for
// connections.
socket = new Socket(LOCALHOST, 2318); // locohost?
// Now hook everything up (i.e. set up the streams), Java style:
is = socket.getInputStream();
isr = new InputStreamReader(is);
br = new BufferedReader(isr);
// Read a single line written by the server. We'd
// do things a bit differently if there were many lines to be read
// from the server instead of one only.
serverMessage = br.readLine();
System.out.println("==================================================");
System.out.print ("Client loop " + clientLoopCount + ": ");
System.out.println("now we're talking!");
System.out.println("The message the server sent was: '" + serverMessage + "'");
// socket gets closed, either automatically/silently by this code (or possibly by the server)
Thread.sleep(500l); // slow things down, for example 500l (long) = 500 msec
} // end while(true) // infinite loops are dangerous, be sure to kill this process!
}
catch (IOException e)
{
System.err.println("Problem with " + FrankTCPExample3Client.class.getName() + " networking:"); // describe what is happening
System.err.println("Error: " + e);
// Provide more helpful information to user if exception occurs due to running twice at one time
if (e instanceof java.net.BindException) {
System.err.println("*** Be sure to stop any other running instances of programs using this port!");
}
}
finally // occurs after any other activity when shutting down
{
try {
if (socket != null)
socket.close();
} catch (IOException e) {}
// program exit: tell somebody about that happening. Likely cause: server drops connection.
System.out.println();
System.out.println( "FrankTCPExample3Client.class.getName() + exit");
}
}
}

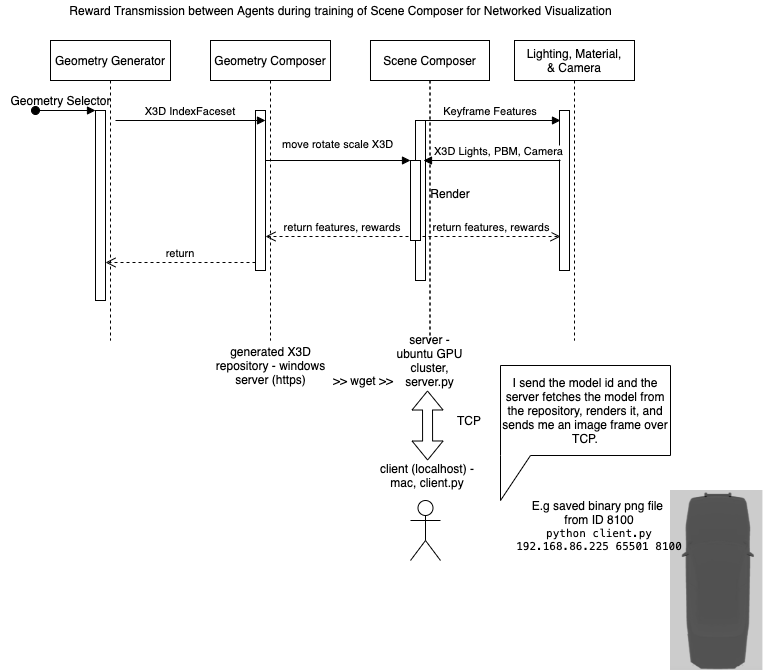

#Adapted from https://github.com/realpython/materials/blob/master/multiconn-client.py
import sys
import socket
import selectors
import types
import contextlib
import os
with contextlib.suppress(FileNotFoundError):
os.remove('screenshot.png')
sel = selectors.DefaultSelector()
def start_connections(host, port, x3d_id):
server_addr = (host, port)
print("starting connection to", server_addr)
sock = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
sock.setblocking(False)
sock.connect_ex(server_addr)
events = selectors.EVENT_READ | selectors.EVENT_WRITE
data = types.SimpleNamespace(
connid=1,
msg_total=sum([1]),
recv_total=0,
messages=[str(x3d_id).encode()],
outb=b"",
)
sel.register(sock, events, data=data)
def service_connection(key, mask):
sock = key.fileobj
data = key.data
if mask & selectors.EVENT_READ:
recv_data = sock.recv(1024) # Should be ready to read
sock.settimeout(None)
if not recv_data:
print("closing connection", data.connid)
sel.unregister(sock)
sock.close()
if recv_data:
with open('screenshot.png','ab') as b:
b.write(recv_data)
data.recv_total += len(recv_data)
print("received " + str(data.recv_total) + " image bytes from connection", data.connid)
if mask & selectors.EVENT_WRITE:
if not data.outb and data.messages:
data.outb = data.messages.pop(0)
if data.outb:
print("sending", repr(data.outb), "to connection", data.connid)
sent = sock.send(data.outb) # Should be ready to write
data.outb = data.outb[sent:]
if len(sys.argv) != 4:
print("This program simulates the agent communicate process where a client requests a dynamically rendered X3D asset from the host.")
print("usage:", sys.argv[0], "<host 192.168.86.225> <port 65500> <x3d asset number [0-14138] >")
sys.exit(1)
host, port, x3d_id = sys.argv[1:4]
start_connections(host, int(port), int(x3d_id))
try:
while True:
events = sel.select(timeout=1)
if events:
for key, mask in events:
service_connection(key, mask)
# Check for a socket being monitored to continue.
if not sel.get_map():
break
except KeyboardInterrupt:
print("caught keyboard interrupt, exiting")
finally:
sel.close()
sel.close()
\ No newline at end of file
MV3500Cohort2021JulySeptember/homework1/Lentz_Python/sequence.png

73.6 KiB

#Adapted from https://github.com/realpython/materials/blob/master/multiconn-client.py
import sys
import socket
import selectors
import types
import subprocess
import time
sel = selectors.DefaultSelector()
def accept_wrapper(sock):
conn, addr = sock.accept() # Should be ready to read
print("accepted connection from", addr)
conn.setblocking(False)
data = types.SimpleNamespace(addr=addr, inb=b"", outb=b"")
events = selectors.EVENT_READ | selectors.EVENT_WRITE
sel.register(conn, events, data=data)
def service_connection(key, mask):
sock = key.fileobj
data = key.data
if mask & selectors.EVENT_READ:
recv_data = sock.recv(1024) # Should be ready to read
if recv_data:
data.outb += recv_data
else:
print("closing connection to", data.addr)
sel.unregister(sock)
sock.close()
if mask & selectors.EVENT_WRITE:
if data.outb:
fn = data.outb.decode('ascii')+'.x3d'
print( "getting " + fn )
subprocess.run(["wget", "https://nps.edu/x3d_repository/"+fn,"-O","x3d.x3d"])
subprocess.run(["/castle_game_engine/bin/view3dscene", "--screenshot","0","screenshot.png","x3d.x3d"])
png_bytes = open('screenshot.png','rb').read()
print("sending png of length " + str(len(png_bytes)) + ' to ', data.addr)
sent = sock.send(png_bytes) # Should be ready to write
data.outb = png_bytes[sent:]
#time.sleep(5)
#subprocess.run(["rm", "screenshot.png","x3d.x3d"])
if len(sys.argv) != 3:
print("usage:", sys.argv[0], "<host> <port>")
sys.exit(1)
host, port = sys.argv[1], int(sys.argv[2])
lsock = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
lsock.bind((host, port))
lsock.listen()
print("listening on", (host, port))
lsock.setblocking(False)
sel.register(lsock, selectors.EVENT_READ, data=None)
try:
while True:
events = sel.select(timeout=None)
for key, mask in events:
if key.data is None:
accept_wrapper(key.fileobj)
else:
service_connection(key, mask)
except KeyboardInterrupt:
print("caught keyboard interrupt, exiting")
finally:
sel.close()
\ No newline at end of file
0% Loading or .
You are about to add 0 people to the discussion. Proceed with caution.
Finish editing this message first!
Please register or to comment
